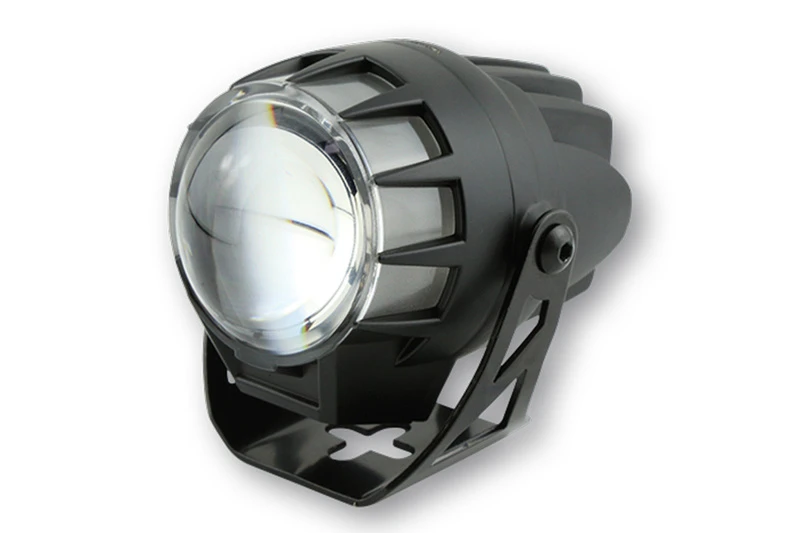

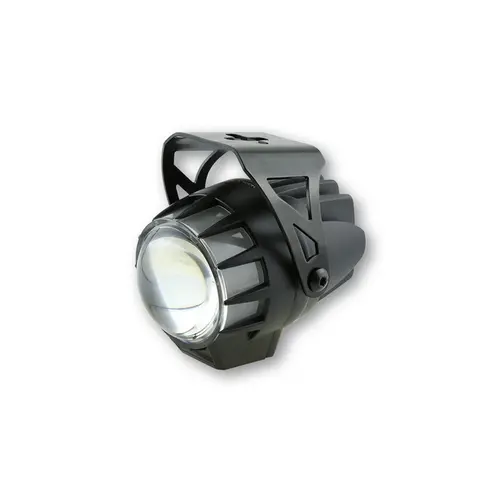

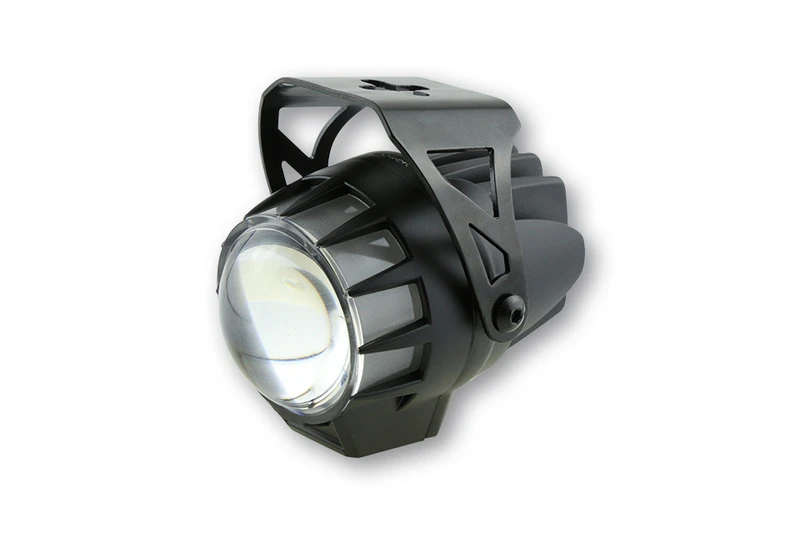

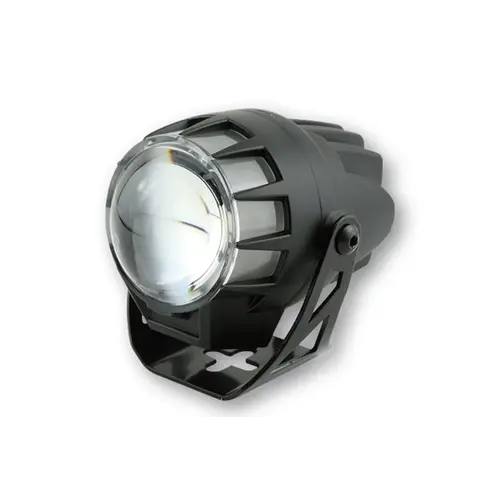

HIGHSIDER Dual-Stream LED Headlight, black, E-tested |1pc

The small all-in-one headlight with round lens is a powerful LED main headlight in a black housing and sturdy bracket. The special feature of the DUAL-STREAM is the parking light illuminated ring around the lens and the shutter technology through which a mechanical shutter switches between high beam and low beam. The use of this modern LED technology makes it possible to achieve the smallest possible housing dimensions while at the same time achieving the highest possible luminous efficacy.

Dimensions:
Diameter lens: approx. 45 mm
Height: 70.2 mm
Width: 67 mm
Depth: 96.5 mm
Mounting hole spacing: 67 mm
Mounting holes on the side: M 5 mm
Housing material: aluminum
Weight: 0.230 Kg

Power consumption:

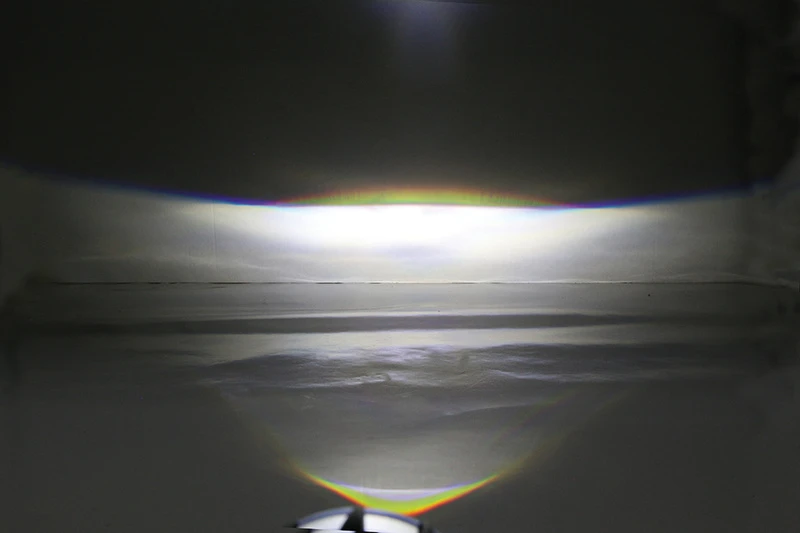

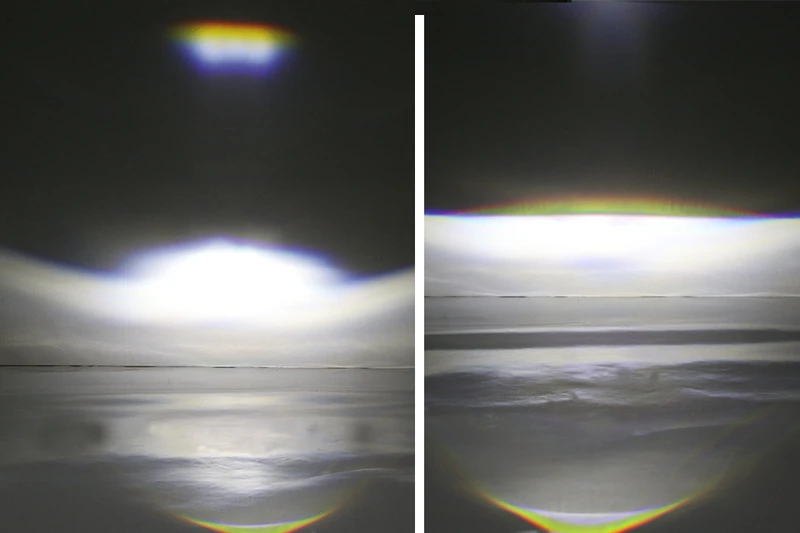

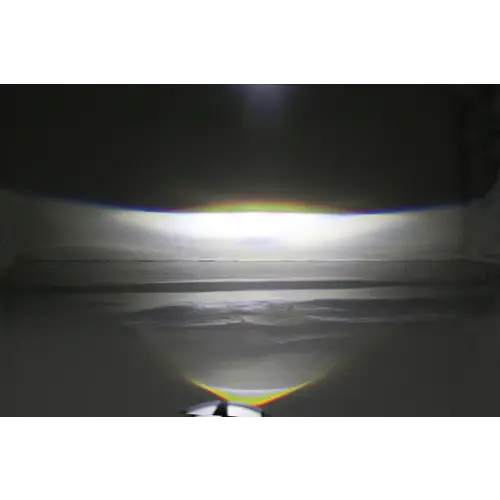

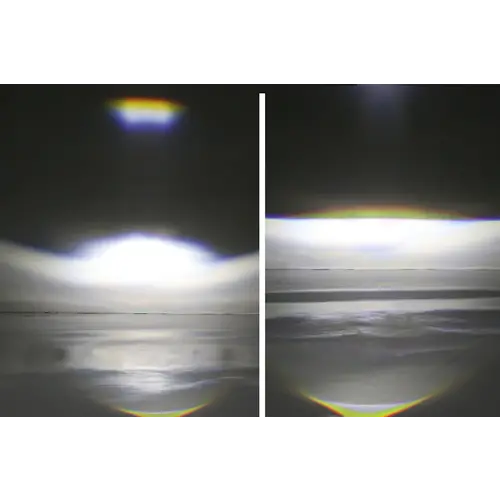

12V / 12W, 739.3 lm, low beam

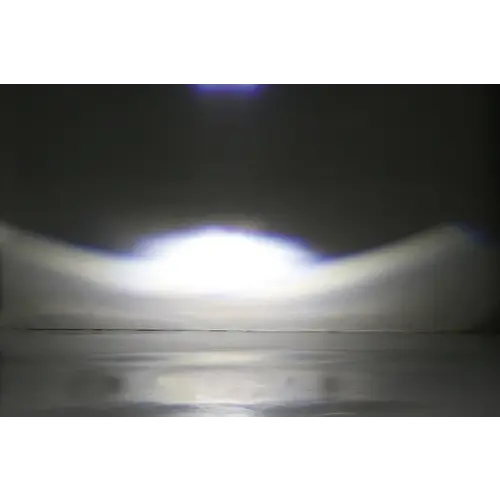

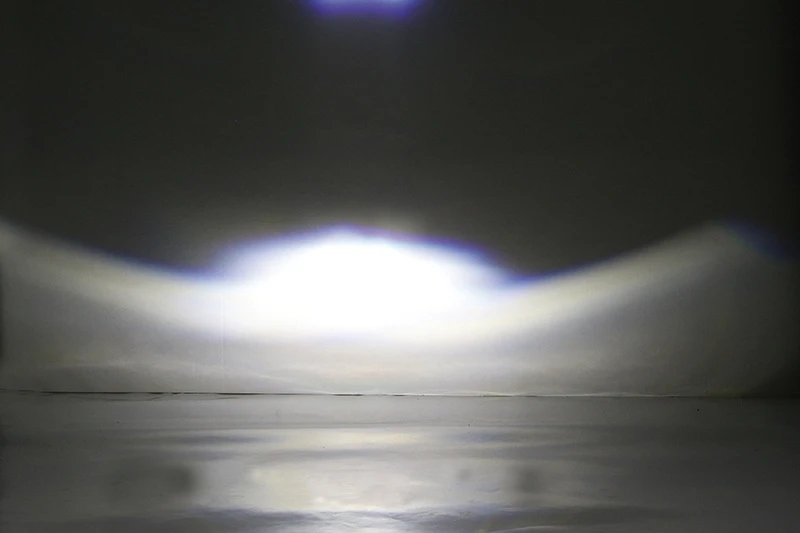

12V / 19 W, 739.3 lm, high beam

Connections:
Position light = brown
Dipped beam = white
The white cable is connected to ignition plus (+)

High beam = blue
Ground = green (-)
